Water Underfloor Heating System Selector

ProFloor pre-grooved panels allow underfloor heating pipes to heat the room efficiently.
Ideal for timber suspended floor structures with joist spacings of up to 400mm centres.
The system uses pre-grooved flooring panels specifically designed for 16mm pipes.
ProFloor Panels help reduce both material costs and installation time.
Installation is quick and straightforward, requiring no additional adhesive and eliminating the need for extra drying time.

Our clip rail system is perfect for situations where clipping directly to the insulation isn’t possible, often due to floor height restrictions limiting insulation thickness.
The self-adhesive rails come in 1-metre lengths and can be easily adhered directly to the subfloor.
Pipes are clipped into the rails at the required spacing, ready for screed installation as usual.
Note: If thicker foil-faced insulation boards cannot be fitted, you can opt for our ProWarm™ insulated tile backer boards, which are only 6mm thick. These can be adhered to the concrete sub-base with flexible tile adhesive, and the clip rail can be attached directly to them before applying the screed as normal.

A foil-faced insulation board, such as Kingspan or Celotex, is first laid onto the concrete subfloor.
The pipework is then clipped directly onto the insulation board for secure placement.
After testing the pipework, it is covered with either a traditional sand and cement screed or a pumped anhydrite screed.

The panels are specifically designed to be compatible with 16mm or 20mm pipework, ensuring efficient heat transfer and optimal performance.
These panels serve a dual purpose, allowing you to use them as a reliable underlay for both tiles and floating floors. Enjoy the flexibility to choose your desired floor covering without compromising on the effectiveness of your underfloor heating system.
These panels are compatible with a wide range of floor coverings, including laminate, engineered wood, and porcelain/ceramic tiles. You have the freedom to choose the perfect finish for your space.

The boards feature an 15mm or 18mm high-density dry gypsum fibre board that serves as a highly efficient heat conducting surface
Compatible with all types of floor coverings
The panels provide pre-determined pipe spacing, ensuring accurate and consistent heat distribution throughout the heated floor area.
Available thickness 15 & 18mm

Aluminium spreader plates are fixed to joists with screws or nails.
Plates have 16mm pre-formed grooves set at 200mm centres for ProWarm™ European Standard Pex-Al-HDPE pipes.
Batons are installed on the sides of the joists, about 70mm from the top, if joists are deep enough.
50mm foil-faced insulation (e.g., Celotex or Kingspan) is cut and placed onto the batons.
Pipework is clipped directly into the grooves of the spreader plates for optimal heat distribution.

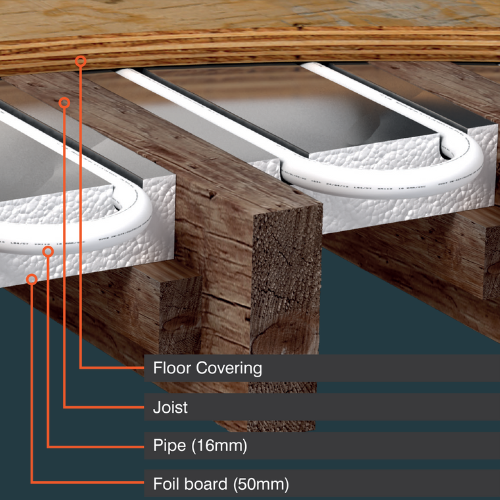

These innovative boards combine the functionality of both spreader plates and insulation in one system.
The 50mm thick XPS insulation panels feature pre-formed grooves at 200mm centres to hold the pipes.
The entire board is coated with aluminium foil to ensure even heat distribution across the floor above.
In a standard installation, batons are fixed to the sides of the joists about 70mm from the top.
The boards are then placed on top of the batons, and the pipes are clipped directly into the pre-formed grooves for easy installation.
