Description
Enhance the performance of your underfloor heating with ProWarm™ Underfloor Heating Spreader Plates. Crafted with aluminium, these diffuser plates are engineered to optimize heat distribution, ensuring consistent warmth across your entire floor.

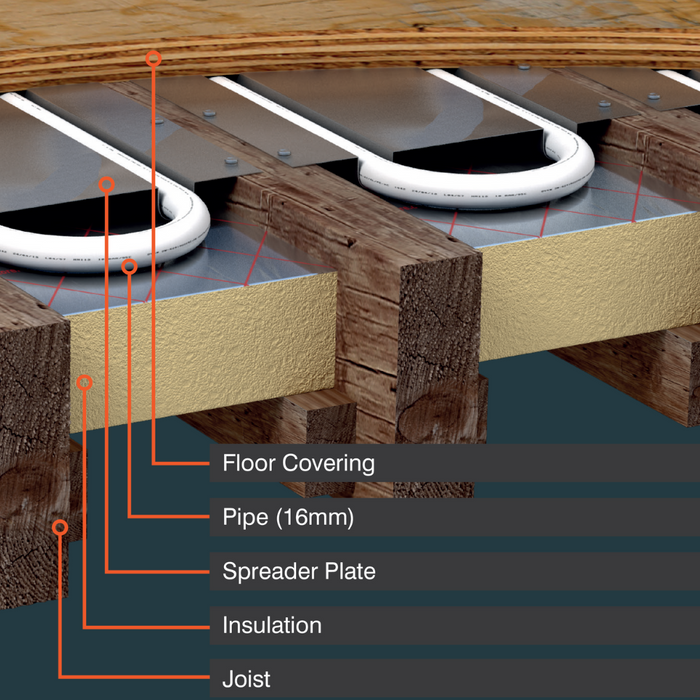

Ideal for suspended timber subfloors with joists spaced at 400mm centers, the ProWarm Spreader Plate System seamlessly integrates with our Pert-Al-Pert pipe. The pipe securely clips into the grooves of the spreader plate, which can be easily attached to joists using screws or nails. To maximize efficiency and minimize heat loss, we recommend installing as much insulation as possible beneath the plates. Once in place, cover the system with a structural subfloor like plywood or screed board for a flawless finish.
Upgrade your heating system with ProWarm™ and enjoy a more efficient and comfortable home.
Easy Installation: The spreader plates are laid across traditional joists and can be fixed in place using a hand stapler. Enjoy a hassle-free installation process.
Optimal Heat Distribution: The high-grade aluminium construction of the spreader plates ensures an even spread of heat across the entire floor surface. Experience consistent and comfortable warmth in your living space.
Suitable for Wooden Joists: These spreader plates are specifically designed for wooden joists with 400mm centers. They provide excellent compatibility and performance in wooden floor constructions.
Lightweight Design: The spreader plates are lightweight, making them easy to handle and install. Save time and effort during the installation process.
Compatible with 15mm or 16mm Pipe: This product is designed to work seamlessly with 15mm or 16mm Pert-Al-Pert pipe. Choose the pipe size that suits your specific underfloor heating system.
Upgrade your underfloor heating system with ProWarm™ Aluminium Spreader Plate. Experience efficient heat distribution, quick installation, and the ultimate comfort in your living space.
Product code:SPREADERPLATE
Specifications
This high-grade aluminium plate is designed for use with 15mm or 16mm pipework.
Width
390mm
Length
1000mm
Depth
0.5mm
Weight
0.56kg
Groove spacings
133mm / 150mm / 200mm centres (Depends on option selected)
Total floor coverage per plate
0.39m2
Installation
As you begin, you will need to place the aluminium spreader plates away from the walls to allow room for the pipes to bend and return in the opposite direction. allow at least 250 mm for this.
Secure the spreader plates as you go using either staples, nails or screws. Whichever you use, be sure they are secured flush with the surface of the spreader plate.
When you place the second spreader plate, leave a 10 mm gap to allow for expansion.
Before securing this second spreader plate, insert a small length of pipe into the two spreader plates' meeting channels to ensure they align correctly.
Leave this in place whilst you secure the second spreader plate before removing. At no point allow the spreader plates to overlap as this will cause a noise when heating up and cooling down.
Reviews
FAQ
Do you need spreader plates for underfloor heating?
Spreader plates are often used in water-based underfloor heating systems, particularly when installing the system in joisted floors. They help distribute heat evenly across the floor, ensuring consistent warmth and improving the system's
efficiency. Additionally, spreader plates provide stable support for the heating pipes and simplify the installation process by setting the pipe spacing.
However, spreader plates may not be necessary for all types of underfloor heating systems. For example, they are less suitable for use with heat pumps, which require lower flow temperatures. In such cases, alternatives like screed or
biscuit mix might be more appropriate.
What is the purpose of underfloor heating spreader plates?
Underfloor heating spreader plates are essential for water-based systems, ensuring even heat distribution and preventing hot spots. They support heating pipes, maintain correct spacing, and simplify installation compared to other methods like screed. By enhancing heat distribution and reducing heat loss, spreader plates improve system efficiency and can lower energy bills.
