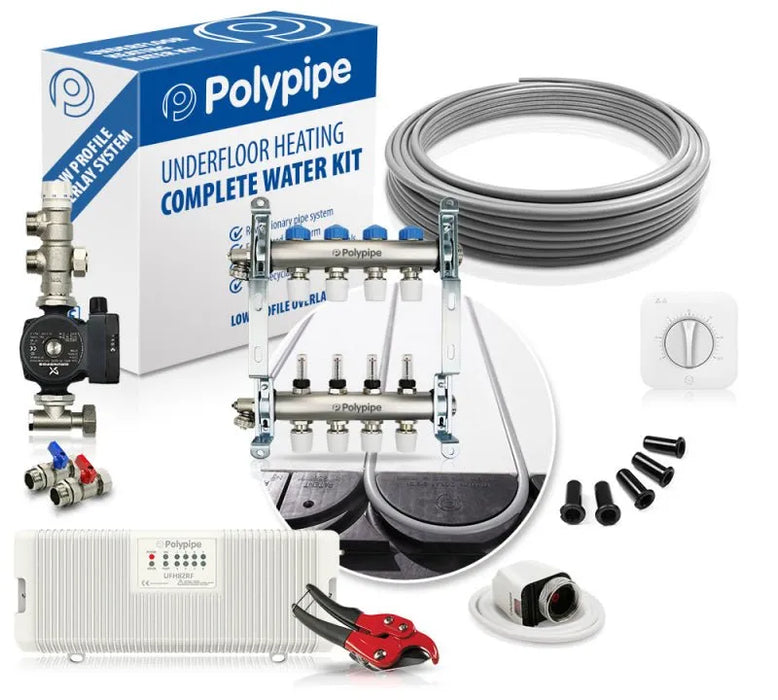

Polypipe Water Underfloor Heating Multi Room Overlay System

Polypipe Water Underfloor Heating Multi Room Overlay System is a unique low profile floor heating system ideal for both renovation and new build projects.

Installed over the existing floor and only 18mm in depth, Overlay™ allows floor heating to be installed where traditional underfloor systems would either require expensive excavation or would require the floor to be raised to an unacceptable level.

The Overlay™ system is available in 2 panel types to allow for installation to all build types and floor coverings.

Overlay™ panel is a fibrous panel used for heavyweight floor coverings such as ceramics, or where the floor covering needs to be secured directly to the panel, e.g., solid wood.

Overlay™ systems use a 12mm pipe at 150mm pipe centres and provide excellent response times and heat output compared with traditional built-in underfloor heating solutions and are therefore ideal for both traditional heating systems and low-temperature renewable systems.

Overlay systems are compatible with 12mm pipe.

• A Rated Grundfos Single Circuit Constant Supply Temperature Unit
  • New EEI compliant pump
  • Mixer Valve
  • Adaptor Kit
  • Isolation Valves

  The Control Pack maintains the water temperature in an underfloor heating system between 35°C and 60°C.

• Multi port push fit manifold includes fill and drain valves

  The manifold comes complete with a drain and air vent assembly, which can be positioned on either end of the manifold. Isolation valves are supplied separately for the supply end of the manifold.

  Each Polypipe manifold includes a flow meter on each flow port to provide a visual indicator of the flow through rate of each circuit.

  • Material: Brass
  • Outside Diameter: 15mm
  • Manufactured in accordance with BS EN ISO 9002
• Thermal Actuators
  • Underfloor Heating Valve Actuator
  • The Polyplumb system is suitable for use in hot and cold water supply
  • The system is suitable for use in working applications up to 12 Bar/20 Degrees Centigrade (6 Bar/90 Degrees Centigrade)
  • Manufactured in accordance with BS EN ISO 9002
• Pipe, includes stainless steel pipe stiffeners
  • Suitable for all plumbing and heating applications as a flexible alternative to copper tube
  • Suitable in both hard and soft water areas.
  • Material: Polybutylene
  • Outside Diameter: 12mm
  • KIWA/KOMO approved (Certificate numbers K14341, 14342 and 14343)
• Polypipe Overlay Floor Panel

  Overlay™ allows floor heating to be installed into existing spaces quickly, simply, and practically. The unique system is a patented low-profile panel, which is laid over existing solid or timber floors. Tiles and laminate can be laid directly onto the system. Carpet and vinyl require a capping layer of 4-6mm plywood. Overlay™ is perfect for kitchens, bathrooms, or conservatories, where minimal wall space is available and total design freedom is required.

• Single zone master control unit and multi zone slave unit

  When used in a 'single zone' application, the master wiring centre provides the wiring connections for the underfloor heating pump, two-port zone valve, boiler switched live connection (230V or volt-free), and the programmable room thermostat.

  The multi-zone slave unit plugs into the Single Zone Master Unit and provides simple wiring of actuators and room thermostats for multiple zone control.

  Please note: Master control and slave units may change depending on the selection of thermostats.

• Polypipe manual room thermostats as standard

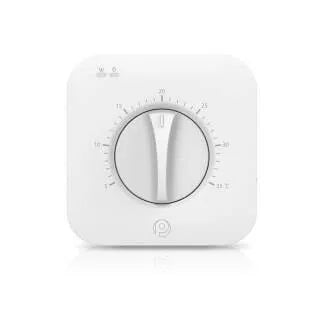

  The PBRS is a traditional dial-type room thermostat that combines accurate comfort control with a familiar dial-type user operation. This thermostat is used in conjunction with the time clock PB2CTC and is provided with a connection for the wet room sensor.

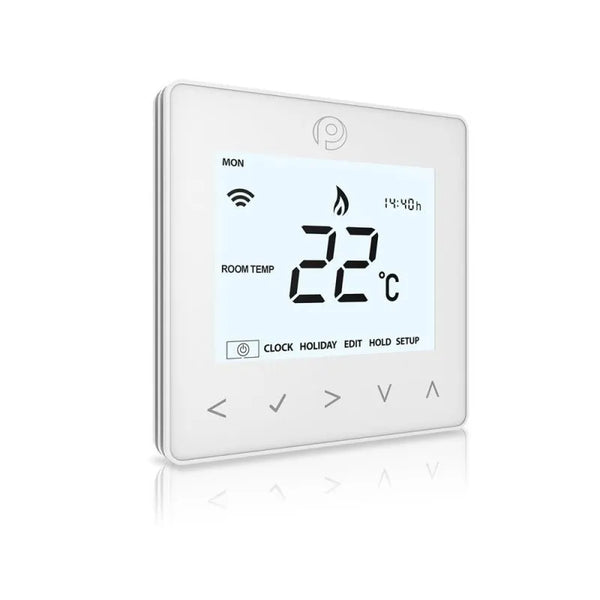

  You can upgrade your thermostat for a small additional cost. See the thermostats tab for further details.
